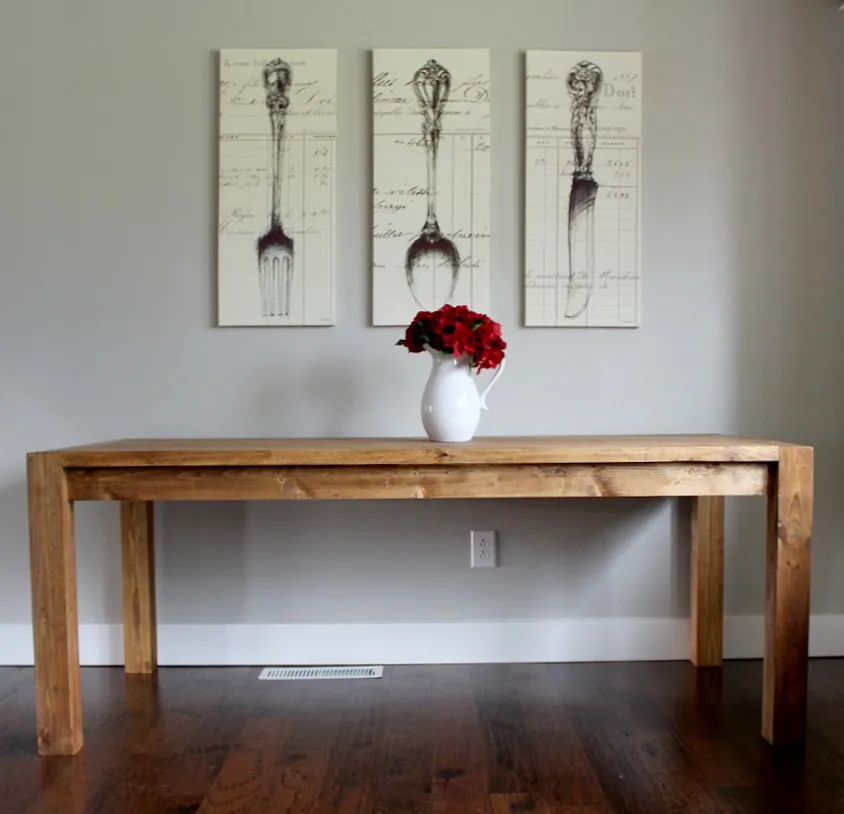

Modern Farmhouse Dining Table
A plan by Woodshop Diaries · reviewed by ThePlanStack, January 2026
A rock-solid dining table good for ~300 lb — sit on the edge, it won't care.
Sturdy for everyday use — holds ~300 lb with margin to spare.
- Cost$150-$200
- SkillBeginner
- TimeA weekend
- Holds~300 lb
The honest take
What the plan doesn't tell you
• The 70-inch tabletop will be heavy once assembled. Get help when you need to flip it or move it.
• Keeping the leg and apron assembly perfectly square is the most important part of this build. Measure your diagonals to check for square before the glue sets.
• Double-check your pocket hole jig and drill bit collar depth settings for the actual thickness of your pine boards. A wrong setting can blow out the wood or create a weak joint.
• Pine can stain unevenly. Use a pre-stain wood conditioner if you’re not painting to avoid a blotchy finish.
This is a solid, straightforward plan for a beginner. Using pocket screws with glue is a reliable method for this style, but ensuring your joints are clamped tight before driving screws is critical for a table this size. The plan's specific orientation and support guidance in the steps are a good sign of a well-thought-out design. Pine is the right choice for cost and the farmhouse look, just know it's a softwood that will show wear over time.
Who it's for
Who should build this — and who should skip it
First-timer friendly — a solid early project with no fussy joinery. A real dining table you can eat at and lean on every day. Skip it if you need it to carry much past ~300 lb.
The checks
What we checked, and what held
Holds ~300 lb safely
Finished size 30H x 70W x 36D
Comfortably handles normal household use with a sound safety margin.
- Governing member
- Side apron
- Material
- Pine
- Cross section
- 1.50 in × 3.50 in
- Orientation
- On edge
- Clear span
- 31.5 in
- Load applied
- 120 lb
- Measured sag
- 0.0354 in
- Working load
- ~300 lb
- Finished weight
- 93.7 lb
Load case ~120 lbs on this member - its share of a ~300 lb load on the whole piece
| Check | Result |
|---|---|
| Bending in the side apron — 41% of allowable | PASS |
| Sag in the same member — L/889 against an L/120 limit | PASS |
| Table Top Boards #2 | PASS |
| Table Top Boards #3 | PASS |
| Table Top Boards #4 | PASS |
| Front End Aprons | PASS |
| Tip-over resistance, unloaded — ratio 2.25 against a 1.0 target | PASS |
Conservative run Checked a second time against stricter standards, the same member reads L/593 at 62% of allowable — PASS
The structural reality. We checked the part that works hardest here — the pine side apron — as a loaded beam over its real working span. Under a realistic in-use load it barely flexes — well within furniture limits, deflecting only about 1/889 of its span, with bending stress at roughly 41% of what the wood allows. In short, it should feel firm and stay that way.
Solid for its purpose. Our conservative estimate puts the safe working load at ~300 lbs — enough for everyday meals and projects — even someone perching on the edge. Real-world strength depends just as much on assembly: glue every joint, keep the frame square, and drive your fasteners fully home.
These are planning estimates, not a stamped engineering analysis. Wood varies board to board — for anything safety-critical, check with a qualified pro.
Furniture mode, analysis v7.0. Planning estimates — check anything safety-critical with a qualified pro. How we analyze plans.
Build tips
Before you build
- When joining the tabletop boards, use pipe clamps to apply even pressure and check that the boards are flat and aligned with a straightedge before the glue dries.
- Sand the individual parts before assembly, especially the tabletop boards. It's much harder to get a flat, smooth surface after it's all put together.
- When you buy your pine, sight down the edge of each board to pick the straightest ones you can find. This will save you a lot of headache during assembly.
Reference
Materials & cut list
Lumber & sheet goods
- 4x4x8′ Pine (qty: 2)
- 2x4x8′ Pine (qty: 4)
- 2x10x8′ Pine (qty: 4)
Hardware
- 2-1/2 in pocket hole screws (qty: 100)
- 4 in wood screws (qty: 20)
- Wood glue
- Wood putty
View Full Cut List & Materials
| Part Name | Qty | Dimensions | Material |
|---|---|---|---|
| Table Top Boards | 4 | 70" x 9" x 1.5" | 2x10 Pine |
| Legs | 4 | 30" x 3.5" x 3.5" | 4x4 Pine |
| End Aprons | 2 | 29" x 3.5" x 1.5" | 2x4 Pine |
| Side Aprons | 2 | 63" x 3.5" x 1.5" | 2x4 Pine |
| Center Supports | 2 | 26" x 3.5" x 1.5" | 2x4 Pine |
Cut List Calculator
Cut List Calculator
Calculating optimal cuts...
| Part | Qty | Length | Width | Material |
|---|
Original plan
About this design
This design is Woodshop Diaries’s work, not ours. We review free DIY plans and add the engineering: load paths, spans, joints, and the fixes worth making before you cut. We do not republish the build instructions. For the steps, the photographs and the author’s own notes, go to the source.
